होम /उत्पाद/कंडक्टर स्ट्रिंग ब्लॉक/Professional High Tension Stringing Block for OPGW Installation with 5-20KN Rated Load

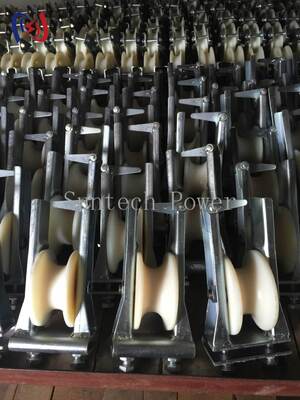

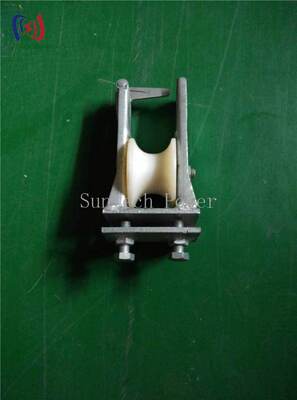

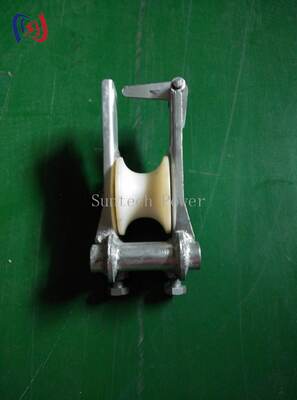

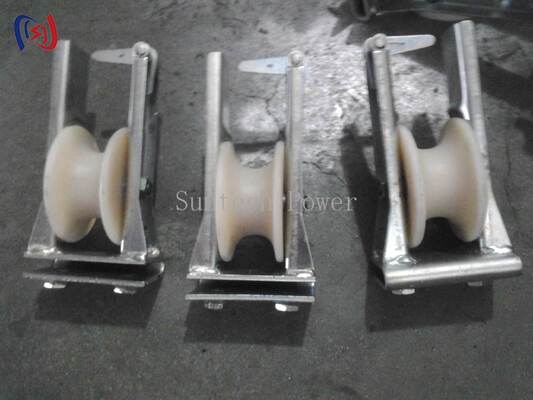

Professional High Tension Stringing Block for OPGW Installation with 5-20KN Rated Load

1 टुकड़ा
MOQ
negotiable
कीमत
Professional High Tension Stringing Block for OPGW Installation with 5-20KN Rated Load
विशेषताएं गेलरी उत्पाद विवरण एक बोली का अनुरोध
विशेषताएं
निर्दिष्टीकरण
नाम: स्काईवर्ड स्ट्रिंगिंग ब्लॉक को घुमाएं
नमूना: एसएचसी
उपयुक्त: एलजीजे25-400
चूहों से भरा हुआ: 5-20KN
वज़न: 1.7-3.8 किग्रा
गारंटी: 1 वर्ष
मूलभूत जानकारी
उत्पत्ति के प्लेस: निंगबो
ब्रांड नाम: Suntech
प्रमाणन: ISO
मॉडल संख्या: एसएचसी
भुगतान & नौवहन नियमों
पैकेजिंग विवरण: प्लाईवुड मामले
प्रसव के समय: 3-7 दिन
भुगतान शर्तें: एल/सी,टी/टी
आपूर्ति की क्षमता: 3000 पीसीएस/माह
उत्पाद विवरण
Professional Swerve Skyward Stringing Block for High Tension Overhead Conductor and OPGW Installation
The Swerve Skyward Stringing Block is a heavy-duty, professional-grade installation tool specifically engineered for the demanding challenges of modern overhead power line construction. It is a critical component in tension stringing systems designed to safely and efficiently install conductors, Optical Ground Wire (OPGW), and other cables.
Product Specifications
Item Number Model Rated Load (KN) Dia×Width Applicable Conductor ACSR Weight (kg) Remark
10231 SHC-0.5 5 Φ80X50 25-185 1.5 Aluminium sheave
10232 SHC-2 20 φ120X60 35-240 3
10221 SHC-1 10 ≤ 400 4
10233 SHCN-0.5 5 Φ80X50 25-185 1.1 Nylon sheave
10234 SHCN-2 20 φ120X60 35-240 2.3
10222 SHLN-1 10 ≤ 400 3
Key Features & Benefits
Minimizes Friction for Efficient High-Tension Pulls: Large-diameter sheave and high-quality bearings drastically reduce rolling resistance, enabling longer continuous pulls with precise cable tension control.
Provides Unmatched Protection for Sensitive Cables: Smooth, contoured groove cradles cables without damaging point loads, especially critical for OPGW and fiber optic cable protection.
Essential for Modern High-Capacity Transmission Lines: Supports large-diameter conductors, bundled configurations, and extreme tensions of extra-high-voltage (EHV) lines.
Engineered for Extreme Durability and Long Service Life: Corrosion-resistant aluminum alloys and sealed bearings withstand harsh field conditions for reliable performance.
Enhances Crew Safety During Critical Operations: Prevents sudden cable snags and derailments, creating a safer environment during high-tension stringing operations.
Specifically Optimized for OPGW Installation: Meticulously designed to protect delicate glass fibers within OPGW cables, preventing signal attenuation.
Improves Project Efficiency and Lowers Costs: Faster pulling speeds, reduced fuel consumption, and superior cable protection eliminate expensive rework.
Professional Grade for Utility Contractors: Demonstrates commitment to industry best practices and technical capability for complex power line projects.
Supports Resilient Power Grid Development: Contributes to building more reliable transmission infrastructure capable of handling peak demands and severe weather.
Strategic Investment in Construction Capability: Protects multi-million-dollar cable assets while ensuring personnel safety and minimizing project risks.
The Swerve Skyward Stringing Block is a precision-engineered solution that balances robust durability with friction-reducing performance to protect valuable assets, enhance safety, and drive efficiency. It is an indispensable tool for professionals building and maintaining high-voltage networks, ensuring projects are completed to the highest standards of quality, reliability, and longevity.
टैग:

तार स्ट्रिंग ब्लॉक

तार रस्सी चरखी ब्लॉक

conductor stringing pulley
